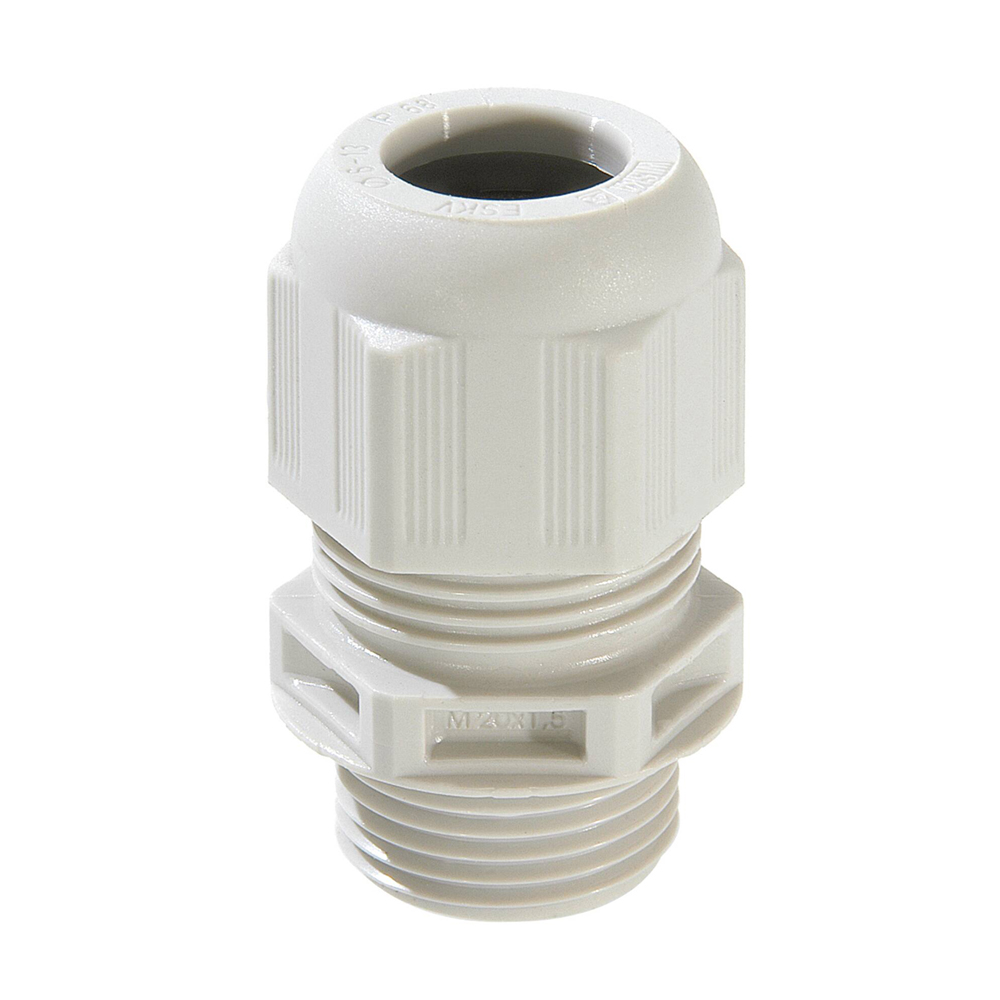

WISKA Sprint ® ESKV Cable Gland Kits (Polyamide)
WISKA Sprint ® ESKV Cable Gland Kits (Polyamide)

Product overview

WISKA Sprint ® ESKV Cable Gland Kits (Polyamide) are Plastic Nylon Gland Packs for external or internal use on Unarmoured Cables. They provide environmental seal on the cable outer sheath, as well as exceptional strain relief and vibration protection. Ideal for diverse commercial and industrial environments, these durable nylon glands ensure safe, highly ingress-protected termination for flexible power, data, and control cables. These glands comply with British and European Standard BS EN 62444:2013, while delivering premium IP68 and IP69 protection ratings against prolonged submersion and high-pressure washdowns.

WISKA ESKV Part Nos

Light Grey (RAL 7035): ESKV 12 LG (10066410), 16 LG (10066411), 20 LG (10066412), 25 LG (10066413), 32 LG (10066414), 40 LG (10066415), 50 LG (10066416), 63 LG (10066417), 75 LG (10112775)

Black (RAL 9005): ESKV 12 BK (10066420), 16 BK (10066421), 20 BK (10066422), 25 BK (10066423), 32 BK (10066424), 40 BK (10066425), 50 BK (10066426), 63 BK (10066426), 75BK (10112776)

ESKV Silver Grey (RAL 7001): ESKV 12 SG (10066380), 16 SG (10066381), 20 SG (10066382), 25 SG (10066383), 32 SG (10066384), 40 SG (10066385), 50 SG (10066386), 63 SG (10066387)

White (RAL 9001): ESKV 25 WH (10102748)

Red (RAL 3000): ESKV 25 RD (10060456)

Features

  • Suitable for both indoor and outdoor use
  • Protection Class IP68 (Submersible up to 5 bar for 30 mins) and IP69 (Protected against high-pressure hot water jets)
  • Gland made from high-grade Polyamide (Nylon), featuring the patented WISKA Sprint® cap nut design for optimal seal and strain relief
  • Sealing gasket made from premium EPDM (Black)
  • Gland suitable for external or internal use on Unarmoured Cables
  • Delivers excellent mechanical cable retention and vibration-proof installation
  • Interlocking coarse thread prevents the cap nut from backing off or shaking loose under heavy machinery vibration

Technical Data

  • Complies with BS EN 62444:2013 (Standard for cable glands in electrical installations)
  • Gland rated to IP68 / IP69 EN60529
  • Service temperature range between -40°C to +100°C
  • Glow wire test rating of 750°C
  • Metric thread versions with standard 1.5mm pitch

WISKA Sprint ® ESKV Cable Gland Kits Contents

  • SPRINT ® ESKV Polyamide (Plastic) Gland
  • EPDM Connection Thread Seal / Sealing Gasket

For more information on WISKA Sprint ® ESKV Cable Gland Kits (Polyamide), please consult the Technical Data Table or Download the PDF files below.

Please note that technical information are subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Gland Type Colour Wiska Part No Entry Thread Size
(D x N)		 Entry Thread Length
(L)		 Cable Diameter Ø
 Key Width
(SW)		 Total Length
(TL)		 Qty per Kit
ESKV 12 LG
 Light Grey 10066410 M12 x 1.5 9 mm
3 - 7 mm
 16 mm 29 - 34 mm 50
ESKV 16 LG
 Light Grey 10066411 M16 x 1.5 9 mm
4.5 - 10 mm
 20 mm 31 - 37 mm 50
ESKV 20 LG
 Light Grey 10066412 M20 x 1.5 10 mm
6 - 13 mm
 24 mm 36 - 45 mm 50
ESKV 25 LG
 Light Grey 10066413 M25 x 1.5 10 mm
9 - 17 mm
 29 mm 38 - 47 mm 50
ESKV 32 LG
 Light Grey 10066414 M32 x 1.5 12 mm 13 - 21 mm 36 mm 42 - 51 mm 25
ESKV 40 LG
 Light Grey 10066415 M40 x 1.5 12 mm 16 - 28 mm 46 mm 52 - 65 mm 10
ESKV 50 LG
 Light Grey 10066416 M50 x 1.5 14 mm 21 - 35 mm 55 mm 59 - 72 mm 4
ESKV 63 LG
 Light Grey 10066417 M63 x 1.5 15 mm 34 - 48 mm 68 mm 64 - 78 mm 3
ESKV 75 LG
 Light Grey 10112775 M75 x 1.5 18 mm 48 - 62 mm 85 mm 75 - 86 mm 1
ESKV 12 BK
 Black 10066120 M12 x 1.5 9 mm
3 - 7 mm
 16 mm 29 - 34 mm 50
ESKV 16 BK
 Black 10066121 M16 x 1.5 9 mm
4.5 - 10 mm
 20 mm 31 - 37 mm 50
ESKV 20 BK
 Black 10066122 M20 x 1.5 10 mm
6 - 13 mm
 24 mm 36 - 45 mm 50
ESKV 25 BK
 Black 10066123 M25 x 1.5 10 mm
9 - 17 mm
 29 mm 38 - 47 mm 50
ESKV 32 BK
 Black 10066124 M32 x 1.5 12 mm 13 - 21 mm 36 mm 42 - 51 mm 25
ESKV 40 BK
 Black 10066125 M40 x 1.5 12 mm 16 - 28 mm 46 mm 52 - 65 mm 10
ESKV 50 BK
 Black 10066126 M50 x 1.5 14 mm 21 - 35 mm 55 mm 59 - 72 mm 4
ESKV 63 BK
 Black 10066127 M63 x 1.5 15 mm 34 - 48 mm 68 mm 64 - 78 mm 3
ESKV 75 BK
 Black 10112776 M75 x 1.5 18 mm 48 - 62 mm 85 mm 75 - 86 mm 1
ESKV 12 SG
 Silver Grey 10066380 M12 x 1.5 9 mm
3 - 7 mm
 16 mm 29 - 34 mm 50
ESKV 16 SG
 Silver Grey 10066381 M16 x 1.5 9 mm
4.5 - 10 mm
 20 mm 31 - 37 mm 50
ESKV 20 SG
 Silver Grey 10066382 M20 x 1.5 10 mm
6 - 13 mm
 24 mm 36 - 45 mm 50
ESKV 25 SG
 Silver Grey 10066383 M25 x 1.5 10 mm
9 - 17 mm
 29 mm 38 - 47 mm 50
ESKV 32 SG
 Silver Grey 10066384 M32 x 1.5 12 mm 13 - 21 mm 36 mm 42 - 51 mm 25
ESKV 40 SG
 Silver Grey 10066385 M40 x 1.5 12 mm 16 - 28 mm 46 mm 52 - 65 mm 10
ESKV 50 SG
 Silver Grey 10066386 M50 x 1.5 14 mm 21 - 35 mm 55 mm 59 - 72 mm 4
ESKV 63 SG
 Silver Grey 10066387 M63 x 1.5 15 mm 34 - 48 mm 68 mm 64 - 78 mm 3
ESKV 25 WH
 White 10102748 M25 x 1.5 10 mm 9 - 17 mm 29 mm 38 - 47 mm 50
ESKV 25 RD
 Red 10060456 M25 x 1.5 10 mm 9 - 17 mm 29 mm 38 - 47 mm 50
Wiska-Sprint-ESKV-GLP-Cable-Glands-Technical-Image
