Elpress KRF NS Copper Cable Lugs with No Inspection Hole (16-630mm²)

Product overview

Elpress KRF NS Copper Cable Lugs with No Inspection Hole (16-630mm²)

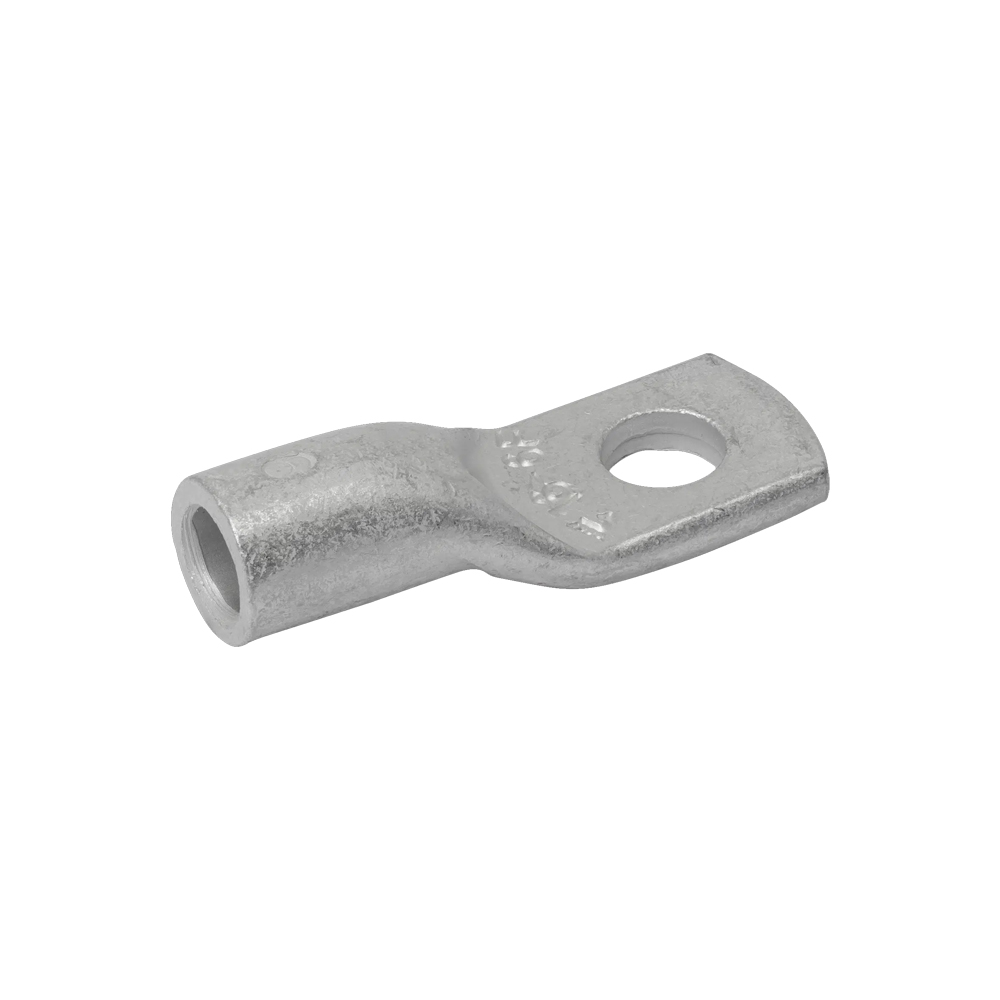

Elpress KRF NS Copper Cable Lugs (16–630mm²) are high-performance compression terminals for electrical installations requiring a closed barrel design. With no inspection hole, KRF’s fully enclosed barrel delivers enhanced mechanical strength, improved sealing and long-term reliability.

Elpress manufactures these KRF NS Copper Lugs from high-purity electrolytic copper (Cu 99.95%) and finishes them with a tin-plated (Cu/Sn) coating. This ensures excellent conductivity, corrosion resistance and consistent crimp performance in demanding environments.

Elpress Part Numbers: KRF16-6NS, KRF16-8NS, KRF16-10NS, KRF16-12NS, KRF25-6NS, KRF25-8NS, KRF25-10NS, KRF25-12NS, KRF35-6NS, KRF35-8NS, KRF35-10NS, KRF35-12NS, KRF50-6NS, KRF50-8NS, KRF50-10NS, KRF50-12NS, KRF70-8NS, KRF70-10NS, KRF70-12NS, KRF95-8NS, KRF95-10NS, KRF95-12NS, KRF95-16NS, KRF120-10NS, KRF120-12NS, KRF120-16NS, KRF150-12NS, KRF150-16NS, KRF185-12NS, KRF240A-12NS, KRF240A-16NS, KRF400A-12NS, KRF400A-16NS, KRF400A-20NS, KRF630-00NS.

Key Features & Benefits

• Closed barrel design (NS = No See) for increased mechanical strength and improved sealing in demanding environments
• High-purity electrolytic copper (Cu 99.95%)
• Tin-plated Cu/Sn finish for corrosion resistance and long service life
• Suitable for Class 2, Class 5 and Class 6 copper conductors (IEC 60228)
• Recommended Elpress DUAL system for Class 5 and Class 6 conductors
• Compatible with Elpress certified crimping systems for repeatable results
• DNV approved (16–800mm²) for offshore and marine applications
• UL approved (95–300mm²) for international compliance
• High vibration resistance for rail, automotive, electrical vehicles (EVs) and industrial environments
• Reliable long-term electrical and mechanical performance

Why Choose Elpress KRF NS Lugs?

KRF NS Tube Terminals are designed for applications where a fully closed barrel is required without inspection holes. This makes them ideal for heavy-duty and safety-critical installations. Their construction ensures consistent performance in harsh operating environments such as offshore, rail and electrified transport systems.

When used with Elpress crimping systems, KRF NS Cable Lugs deliver a certified, tested and repeatable connection in accordance with IEC 61238-1 standards. This ensures long-term installation integrity across various industrial applications.

System Elpress

System Elpress consists of Terminals and Tools designed and tested together to give a certified crimping result. This ensures that users will feel confident when using our systems, and the achievement of a secure connection through the proper handling of our products. By using Elpress Cu-Connection elements together with one of Elpress Crimp Systems one obtains a connection that has been tested according to the requirements of IEC 61238:1.

For Additional Information on Elpress KRF NS Copper Cable Lugs (16-630mm²), please consult the Technical Data Table or PDF File below.

*Technical Data subject to change without notice.
