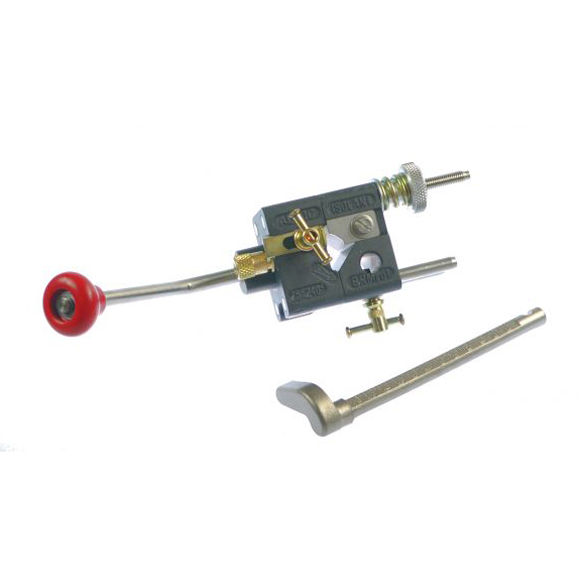

Penta Alroc BRMRD1E - Primary Insulation Removal Tool

Product overview

Penta Alroc BRMRD1E Tool allows professionals to remove primary insulation cleanly and precisely from medium voltage cables. With its compact size and built-in length-setting mechanism, the Alroc BRMRD1E Tool ensures a consistent cut every time, delivering straight, neat results without damaging the underlying conductor. Designed with efficiency and control in mind, this Primary Insulation Removal Tool supports safer, more accurate cable preparation in demanding environments.

Alroc BRMRD1E – Precision MV Cable Insulation Removal Tool

Engineered for reliable medium voltage cable preparation, the Alroc Primary Insulation Tool enables users to define insulation removal length thanks to its integrated thrust adjustment (BR). The tool delivers straight-edge stripping with a minimal learning curve, ensuring smooth operation even in high-pressure fieldwork. Compatible with cable diameters from 14 mm to 40 mm and insulation up to 9 mm thick, the BRMRD1E Tool is a smart choice for installers, technicians and engineers looking for fast and repeatable insulation removal results.

Key Features & Benefits

  • Built-in thrust adjustment to precisely set insulation length
  • Clean, straight-edge insulation removal
  • Fast and simple operation for field or workshop use
  • Compact and ergonomic design for easy handling
  • Ideal for MV cable preparation and maintenance
  • Insulation thickness capacity: 9 mm (0,354 in)
  • Tool capacity range: Diameter 14 – 40 mm (0,551 – 1,575 in)
  • Dimensions: Length 270 mm, Width 100 mm, Height 165 mm
  • Weight: 1,1 kg – lightweight and easy to transport
  • Supplied in a protective box for added portability

Penta BRMRD1E Tool – Trusted Performance for Medium Voltage Cable Prep

Whether you’re stripping insulation during cable installation or preparing terminations for connection, the Penta Primary Insulation Tool delivers excellent results with minimal risk of error. This BRMRD1E Primary Insulation Tool is built for professionals who need high-quality cable prep tools that deliver speed, control and reliability. Wherever you work, the Penta BRMRD1E offers a compact, effective solution that gets the job done.


For Additional Information, please consult the Technical Data Table or PDF File below.

*Technical Data subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Part Number Diameter (mm) Diameter (in) Insulation Thickness Capacity (mm) Insulation Thickness Capacity (in) Length (mm) Length (in) Width (mm) Width (in) Height (mm) Height (in) Packaging
BRMRD1E 14 - 40 0,551 - 1,575 9 0,354 270 10,630 100 3,937 165 6,496 Box
