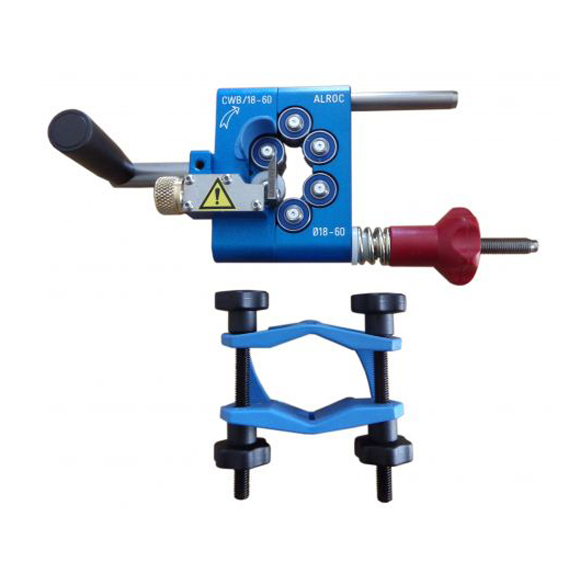

Penta Alroc CWB/18-60-MVS – MV Bonded Semicon Removal & Stripping Tool
Product overview
Penta Alroc CWB/18-60-MVS – MV Bonded Semicon Removal & Stripping Tool provides accurate, efficient removal of bonded semi-conductors without the use of silicon. This versatile tool delivers clean, straight chamfers on the semicon cutback, ensuring high-quality preparation for MV cable installations. Engineered for reliability, the Penta Alroc CWB/18-60-MVS Tool features a large contact surface stop (MVS) for controlled use. This makes it an essential addition to any cable professional’s toolkit.
Penta Alroc CWB/18-60-MVS – Precision Tool for MV Cable Preparation
The Penta Alroc CWB/18-60-MVS Tool is purpose-built for stripping and preparing bonded semi-conductors with precision. Operating within a diameter range of 18 to 60 mm, it features a fine-tuned blade adjustment system, allowing precise depth control with a ‘click’ for every 1/10 mm. This guarantees a smooth finish over the insulation, while the integrated MVS stop ensures consistent chamfered cutbacks with a 13° angle. Durable, compact and easy to handle, the tool is perfect for on-site and workshop cable applications.
Key Features & Benefits
- Precise bonded semiconductor removal without the need for silicon
- Clean, straight chamfered cutback with a 13° angle
- Fine blade adjustment in 1/10 mm increments for accuracy
- Large MVS stop for consistent semicon stripping length
- Smooth finish over insulation for professional results
- Tool capacity range: Diameter 18 – 60 mm (0,709 – 2,362 in)
- Chamfer thickness: 1.8 mm (0.071 in)
- Tool dimensions: Length 235 mm, Width 125 mm, Height 90 mm
- Lightweight at just 0,9 kg for comfortable handling
- Supplied in a compact box for convenient transport and storage
- Ideal for medium voltage cable stripping, grounding, fixing, and preparation
Penta Alroc CWB/18-60-MVS Tool – Specialist Solution for Bonded Semicon Stripping
For cable engineers seeking a high-performance solution for bonded semicon removal, the Penta Alroc CWB/18-60-MVS is a trusted choice. With its accurate depth control and reliable MVS stop, it simplifies complex cable preparation tasks while ensuring safety and consistency throughout. From substations to fieldwork, this tool delivers dependable results every time.
For Additional Information, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part Number | Diameter (mm) | Diameter (in) | Thickness Capacity (mm) | Thickness Capacity (in) | Angle of the chamfer on the semiconductor | Remaining length of the semiconductor | Length (mm) | Length (in) | Width (mm) | Width (in) | Height (mm) | Height (in) | Packaging |
| CWB/18-60-MVS | 18 - 60 | 0,709 - 2,362 | 1.8 | 0,071 | 13 ° | With MVS stop | 235 | 9,252 | 125 | 4,921 | 90 | 3,543 | Box |
