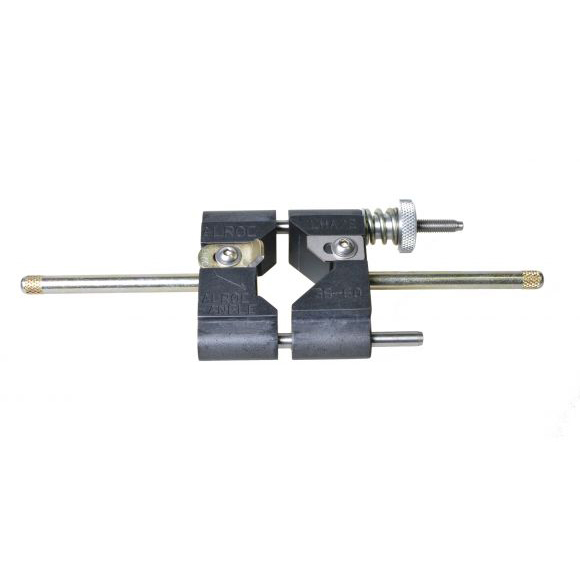

Penta Alroc LHA2 – Tool to Chamfer Insulation
Product overview
Penta Alroc LHA2 Tool enables you to create a precise 30° chamfer on the insulation of medium voltage cables with larger diameters. Designed for seamless operation, the Alroc LHA2 Insulation Tool requires no adjustment before use, making it a quick, reliable solution for professionals working on MV cable terminations. Its strong yet lightweight build ensures high performance and portability in demanding field conditions.
Alroc LHA2 – Efficient Medium Voltage Cable Insulation Chamfer Tool for Larger Diameters
Built to simplify insulation shaping, the Alroc LHA2 Chamfer Tool handles cable diameters from 38 mm to 60 mm with ease. Approved by ENEDIS and developed for utility-grade use, the Penta LHA2 provides uniform chamfering with its fixed 30° angle. The LHA2 Insulation Tool is the ideal choice for installers needing to bevel cable insulation ends consistently, whether on-site or in the workshop. With no setup required and a balanced design, the Penta Alroc LHA2 Tool delivers clean results every time.
Key Features & Benefits
- Produces a consistent 30° chamfer on the insulation of MV cables
- No setting required – fast and simple operation
- Tool capacity range: Diameter 38 – 60 mm (1,496 – 2,362 in)
- Approved by ENEDIS – trusted for professional and utility use
- Compact and robust: Length 280 mm, Width 100 mm, Height 45 mm
- Weight: 0,75 kg – lightweight for comfortable handling
- Supplied in a durable box for safe storage and transport
- Ideal for cable termination, preparation, shaping and maintenance
Penta Alroc LHA2 Tool – The Reliable Choice for Large-Diameter Insulation Chamfering
When preparing medium voltage cables for critical applications, the LHA2 ensures accuracy and repeatability. From crimping to insulation shaping, the Alroc LHA2 Chamfer Tool supports safe, professional work with minimal effort. For large-diameter MV cables, the Penta Insulation Chamfer Tool is a go-to solution for installers and technicians who value speed, safety and consistency.
For Additional Information, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part Number | Diameter (mm) | Diameter (in) | Angle of the Chamfer | Length (mm) | Length (in) | Width (mm) | Width (in) | Height (mm) | Height (in) | Packaging |
| LHA2 | 38 - 60 | 1,496 - 2,362 | 30° | 280 | 11,024 | 100 | 3,937 | 45 | 1,772 | Box |
