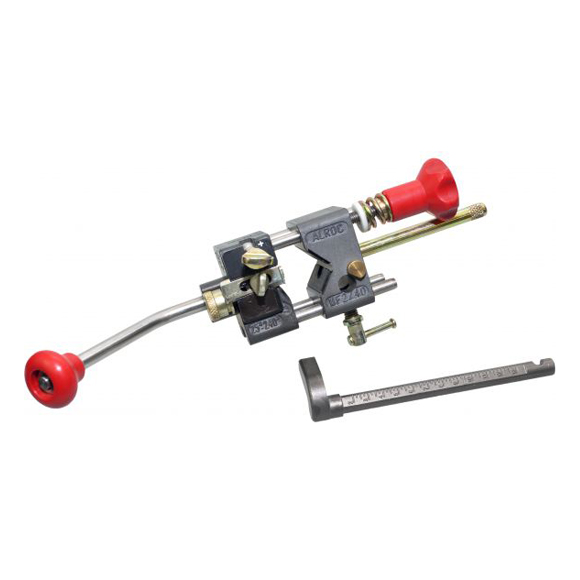

Penta Alroc MF2/40 – Multifunction Tool for Outer Sheath & Insulation
Product overview
Penta Alroc MF2/40 Tool enables you to remove the outer sheath and thicker insulation on medium voltage cables with precision and ease. This multifunction cable prep tool allows for fast, straight cuts through PE, PVC and PR outer sheaths, while also enabling set-length insulation removal with accuracy. Built for control and durability, the Alroc MF2/40 Tool delivers clean, consistent results across every application.
Alroc MF2/40 – Reliable Outer Sheath and Insulation Removal Tool
Designed for versatility in medium voltage cable preparation, the Alroc MF2/40 Tool gives professionals the control they need for precise sheath and insulation work. The pitch-tuning mechanism lets users adjust the tool for varied sheath thicknesses, while embedded wear pads reduce tool abrasion against hard materials. Compact yet capable, the MF2/40 Outer Sheath Tool is a go-to solution for field-ready cable maintenance, installations and repairs.
Key Features & Benefits
- Efficient removal of PE, PVC and PR outer sheaths with a straight, neat cut
- Set-length insulation removal – ideal for thicker insulation layers
- Adjustable pitch tuning for tailored cutting depth
- Embedded wear pads – protects the tool from contact abrasion
- Compact and rugged design for medium voltage cable prep
- Outer sheath and insulation thickness capacity: 7 mm (0,275 in)
- Tool capacity range: Diameter 16 – 40 mm (0,630 – 1,575 in)
- Dimensions: Length 150 mm, Width 80 mm, Height 100 mm
- Weight: 1,24 kg – lightweight and highly portable
- Supplied in a protective box for transport and storage
- Ideal for grounding, crimping, cable installation and maintenance
Penta MF2/40 Tool – A Trusted Solution for Outer Sheath & Insulation Work
Whether you’re prepping cables for jointing or stripping insulation for termination, the Alroc MF2/40 Tool delivers accuracy where it counts. Its smooth-cutting capability helps reduce material damage, while the ergonomic design ensures operator safety and comfort. The MF2/40 Outer Sheath Multifunction Tool is essential for professionals seeking a compact, high-performing cable stripping solution.
For Additional Information, please consult the Technical Data Table or PDF File below.
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
| Part Number | Diameter (mm) | Diameter (in) | Outer Sheath and Insulation Thickness Capacity (mm) | Outer Sheath and Insulation Thickness Capacity (in) | Length (mm) | Length (in) | Width (mm) | Width (in) | Height (mm) | Height (in) | Packaging |
| MF2/40 | 16 - 40 | 0,630 - 1,575 | 7 | 0,275 | 150 | 5,906 | 80 | 3,150 | 100 | 3,937 | Box |
