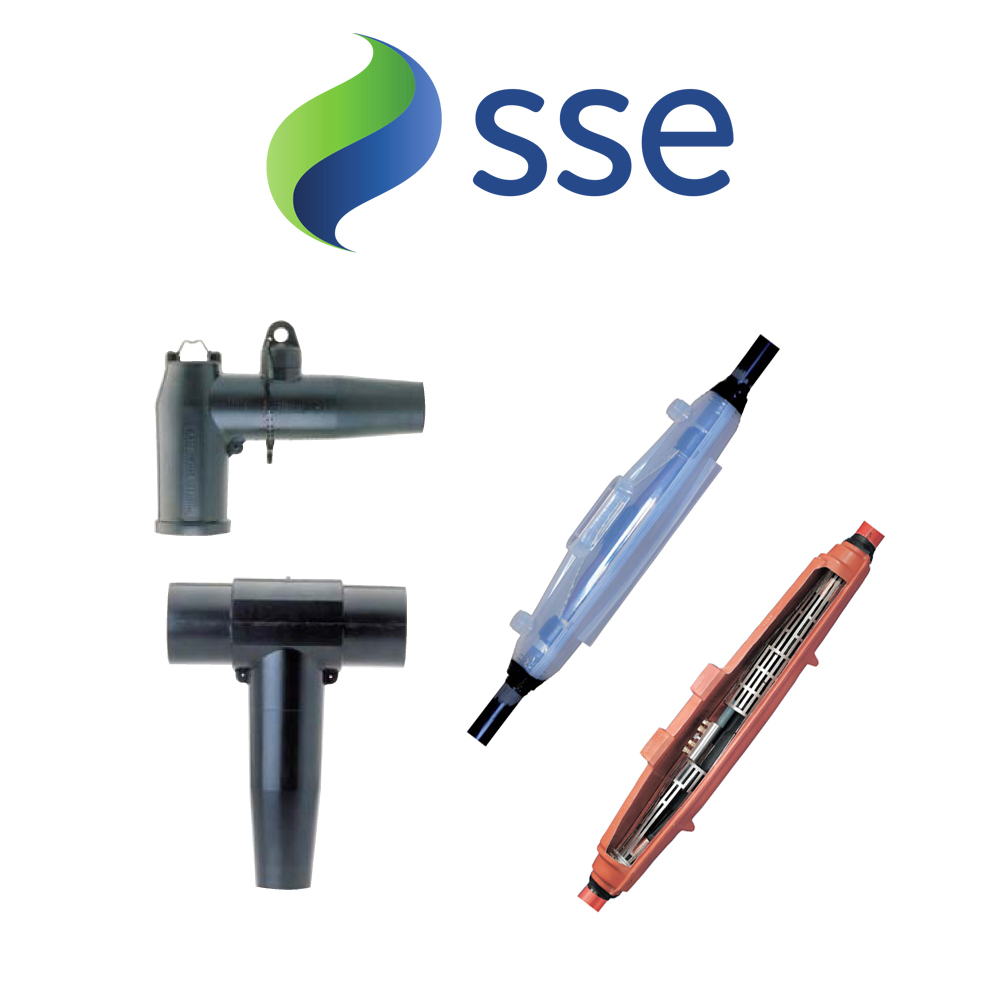

Prysmian BICON Cable Joints & Terminations for SSE
Product overview
Prysmian BICON Cable Joints & Terminations for Scottish & Southern Energy (SSE)
As a trusted supplier of critical infrastructure, we provide the complete range of Prysmian Cable Joints, Terminations and Accessories, specifically approved and listed for Scottish & Southern Energy (SSE) contracts. Ensure rapid compliance, maximum network uptime, and competitive pricing on every project.
Features & Benefits
- Guaranteed Compliance: Eliminates the risk of project delays or rejection.
- High Reliability & Durability: Provides an exceptional moisture seal and mechanical protection that contracts and conforms to complex cable geometries, ensuring a long, maintenance-free service life.
- Electrical Performance: Provides a high-contact-area, low-resistance connection, reducing power loss and preventing overheating at the joint interface.
- Proven Performance Record: Backed by decades of global high-voltage experience, assuring you of a world-class, tested, and reliable product design.
Cable Joints, Terminations & Accessories for SSE
The list below details our full catalog of Prysmian components, including Contract Utility Codes and pricing details
| Utility Code | Voltage | Description | Prysmian Prod. Code | Set of |
| 197472 | 33kV | Build-up Kit – Single core 33kV PILC cables for conductors less than 185 mm² (0·3 in²) | CGBUMJ1130A | 1 |
| 197485 | 33kV | Build-up Kit – Three core 33kV PILC cables for conductors less than 185 mm² (0·3 in²) | CGBUMJ3130A | 3 |
| 191037 | 33kV | Build-up Kit – Single core polymeric insulated 33kV cables for conductors 95 – 185 mm² | CGBUMJ1430A | 1 |
| 191038 | 33kV | HSL Heat Shrink Splitter 95 mm² – 400 mm² or 0·1 in² – 0·6 in² | CGBUHSLSP01 | 1 |
| 197414 | 33kV | Joint – Single Core 33kV straight polymeric – PILC or PILC – PILC for cable sizes 185 – 500 mm² or 0·1 in² to 0·6 in² including mechanical connector with 2 × 240 – 300 mm² and 2 × 185 mm² reducers | CGBUEJSXP500SSE | 1 |
| 173146 | 33kV | Transition Module kit use with Straight Joints | CGBUEJSTU36SSE | – |
| 191035 | 33kV | Joint – Three core 33kV 95 mm² – 300 mm² or 0·1 in² – 0·5 in² ‘H’ type screened or 22 kV belted or screened – 95 – 240 mm² single core polymeric transition trifurcating joint including armour bond and mechanical connectors Reinforced Heat Shrink Outer Protection | CGBUEJTT33HSSE | 3 |
| 191036 | 33kV | Joint – Three core 33kV 185 mm² – 500 mm² or 0·3 in² – 0·65 in² ‘H’ type screened or 22 kV belted or screened to 185 – 500 mm² single core polymeric transition trifurcating joint including armour bond and mechanical connectors Reinforced Heat Shrink Outer Protection | CGBUEJTT33ISSE | 3 |
| 197470 | 22kV | Conversion kit for 22kV belted cable to be use with transition trifurcating joint, if required | CGBUM3532ASSE | 1 |
| 173104 | 33kV | Joint – Single Core 33kV Straight Polymeric – Polymeric 95 mm² – 185 mm² including mechanical connector | CGBUEJSXU36185SSE | 1 |
| 173117 | 33kV | Joint – Single Core 33kV Straight Polymeric – Polymeric 150 mm² – 240 mm² including mechanical connector | CGBUEJSXU36240SSE | 1 |
| 173120 | 33kV | Joint – Single Core 33kV Straight Polymeric – Polymeric 185 mm² – 300 mm² including mechanical connector | CGBUEJSXU36300SSE | 1 |
| 173133 | 33kV | Joint – Single Core 33kV Straight Polymeric – Polymeric 400 mm² – 500 mm² including mechanical connector | CGBUEJSXU36500SSE | 1 |
| 197508 | 33kV | Joint – Single Core 33kV straight polymeric – polymeric 500 mm² – 630 mm² including mechanical connector | CGBUEJSXU36630SSE | 1 |
| 197491 | 33kV | 33kV Guard Gap kit and earthing cable for transposing the copper wire screens on a set of 3 single core polymeric straight joint | CGBUJ1430DW6GG | 1 |
| 173159 | 33kV | Pot end – 33kV 95-240 mm² Single core polymeric | CGBUEJSXUSE36BSSE | – |
| 173162 | 33kV | Pot end – 33kV 300-630 mm² Single core polymeric | CGBUEJSXUSE36DSSE | – |
| 197566 | 33kV | Termination – Outdoor 33kV 70 – 120 mm² polymeric cable (set of 3) including mechanical lugs with 12 mm diameter clearance hole | CGBUEJ140E1SE | 3 |
| 191039 | 33kV | Termination – Outdoor 33kV 150 – 300 mm² polymeric cable (set of 3) including mechanical lugs with 12 mm diameter clearance hole | CGBUEJ140E3SE | 3 |
| 191040 | 33kV | Termination – Outdoor 33kV 500 mm² polymeric cable (set of 3) including mechanical lugs with 12 mm diameter clearance hole | CGBUEJ140E6SE | 3 |
| 197456 | 33kV | Termination – Cable box 33kV 150-300 mm² polymeric cable (set of 3) including mechanical lugs with 12 mm diameter clearance hole and 3 thick wall adhesive lined heat shrink tubes to seal the cable to brass cable glands Type ‘X’ or ‘Y’. | CGBUBJ140H3SE | 3 |
| 197469 | 33kV | Termination – Cable box 33kV 400-630 mm² polymeric cable (set of 3) including mechanical lugs with 12 mm diameter clearance hole and 3 thick wall adhesive lined heat shrink tubes to seal the cable to brass cable glands Type ‘X’ or ‘Y’. | CGBUBJ140H6SE | 3 |
| 191041 | 11kV | Termination – Cable box 11kV 500-630 mm² polymeric cable (set of 3) including mechanical lugs with 12 mm diameter hole and 3 thick wall adhesive lined heat shrink tubes to seal the cable to brass cable glands Type ‘X’ or ‘Y’. | CGBUBF140H6SE | 3 |
| 191043 | 11kV | Termination – Cable box 11kV 500-630 mm² polymeric cable (set of 3) including angled palm mechanical lugs (Tyco Electronics Drg. No. 02-403-0169) with 12 mm diameter hole and 3 thick wall adhesive lined heat shrink tubes to seal the cable to brass cable glands Type ‘X’ or ‘Y’. | CGBUBF140HA6SE | 3 |
| 191042 | 11kV | Termination – Outdoor 11kV 500-630 mm² polymeric cable (set of 3) including mechanical lugs with 12 mm diameter hole | CGBUEF140B6SE | 3 |
| 966324 | 33kV | “I” Spanner (Green) set of 1 | CGBU59658 | 1 |
| 034890 | 33kV | 500sqmm to 185sqmm Sleeve Module (set of 1) | CGBU8703508 | 1 |
| 034891 | 33kV | 500sqmm to 240sqmm Sleeve Module (set of 1) | CGBU8703509 | 1 |
| 034892 | 33kV | 500sqmm to 300sqmm Sleeve Module (set of 1) | CGBU8703510 | 1 |
Contact us for more information on Prysmian BICON Cable Joints & Terminations for Scottish & Southern Energy (SSE).
*Technical Data subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
