Prysmian BICON Sirius Trefoil Cable Cleat 379TC
Product overview
Prysmian BICON Sirius Trefoil Cable Cleat 379TC Series should be used when the level of protection in the harshest environments against high short circuits requires the use of stainless steel.
Prysmian Part Numbers: 379TC01, 379TC02, 379TC03, 379TC04, 379TC05, 379TC06, 379TC07, 379TC08, 379TC09, 379TC10, 379TC11, 379TC12, 379TC13, 379TC14, 379TC15, 379TC16, 379TC17, 379TC18, 379TC19, 379TC20, 379TC21, 379TC22.
Prysmian BICON Sirius Trefoil Cable Cleat – Features & Benefits
- Suitable for use with cable diameters 23mm to 128mm.
- Single or double bolt fixing with reversible base for range taking.
- Operating temperatures -40°C to +120°C.
- Ergonomic design allows easy installation, with single tool tightening from the top side.
- Manufactured from non-magnetic, corrosion resistant 316L stainless steel.
- Liners are made from LSOH materials.
- Suitable for single core cables laid in trefoil formation with high fault current requirements.
- Suitable for standard and LSOH cable sheaths.
- Can be used with all standard ladder and tray systems.
- Prysmian BICON Sirius Trefoil Cable Cleat 379TC complies with IEC 61914.
- For further product support, please contact the Network Components Technical Team.
For Additional Performance Data, Part Number Selection and other Technical Data, please advise PDF Files below. Technical Information subject to change without notice.
FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929
Interested in this Product?
+44 (0)1744 762 929Technical Data
 |

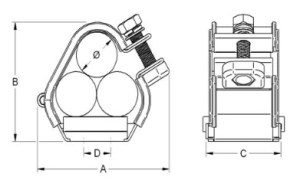

| Design Number | Cable Diameter A Min (mm) |
Cable Diameter A Max (mm) |
B (mm) | C (mm) |
D (mm) | E (mm) | Weight (g) |
| 379TC01 | 23 | 28 | 86 | 71 | 60 | Centre hole only | 500 |
| 379TC02 | 27 | 32 | 92 | 78 | 60 | 25 | 531 |
| 379TC03 | 30 | 35 | 98 | 84 | 60 | 25 | 558 |
| 379TC04 | 33 | 38 | 102 | 90 | 60 | 25 | 585 |
| 379TC05 | 36 | 42 | 108 | 97 | 60 | 25 | 624 |
| 379TC06 | 40 | 46 | 115 | 105 | 60 | 25 | 657 |
| 379TC07 | 44 | 50 | 120 | 112 | 60 | 25 | 693 |
| 379TC08 | 48 | 55 | 129 | 121 | 60 | 50 | 734 |
| 379TC09 | 51 | 58 | 133 | 127 | 60 | 50 | 764 |
| 379TC10 | 55 | 62 | 140 | 134 | 60 | 50 | 795 |
| 379TC11 | 59 | 66 | 145 | 142 | 60 | 50 | 831 |
| 379TC12 | 63 | 70 | 150 | 150 | 60 | 50 | 869 |
| 379TC13 | 67 | 74 | 157 | 157 | 60 | 75 | 905 |
| 379TC14 | 71 | 78 | 164 | 164 | 60 | 75 | 939 |
| 379TC15 | 74 | 82 | 172 | 172 | 60 | 75 | 975 |
| 379TC15 | 77 | 85 | 178 | 178 | 60 | 75 | 1010 |
| 379TC17 | 82 | 88 | 184 | 184 | 60 | 100 | 1046 |
| 379TC18 | 88 | 96 | 200 | 198 | 60 | 100 | 1081 |
| 379TC19 | 96 | 103 | 214 | 210 | 60 | 100 | 1117 |
| 379TC20 | 103 | 111 | 230 | 225 | 60 | 125 | 1152 |
| 379TC21 | 111 | 119 | 245 | 240 | 60 | 125 | 1188 |
| 379TC22 | 119 | 128 | 264 | 257 | 60 | 150 | 1223 |
Notes:
All cleats have a single central fixing hole for a 12mm diameter fixing bolt. Styles 02 to 22 can also be fixed with 2 x 10mm bolts - the 10mm clearance holes are positioned either side of the central hole with centres as per dimension D.
Technical Data subject to change without notice.
Performance Data
| BS EN 61914 | Clause | Classification |
| Type | 6.1.3 | Composite |
| Operating Temperature | 6.2 | -40ºC to +120ºC |
| Impact Resistance | 6.3 | V.Heavy |
| Needle Flame | 10.1 | >120 secs |
| Resistance to Short Circuit | 6.4.3 (1 short circuit)
6.4.4 (2 short circuit) |
80kA rms, 175kA peak, Ø=36mm, Spacing=300mm
79.5kA rms, 175kA peak, Ø=36mm, Spacing=300mm |
| Corrosion | 6.5.2 | High, Outdoor - Wet Conditions |
