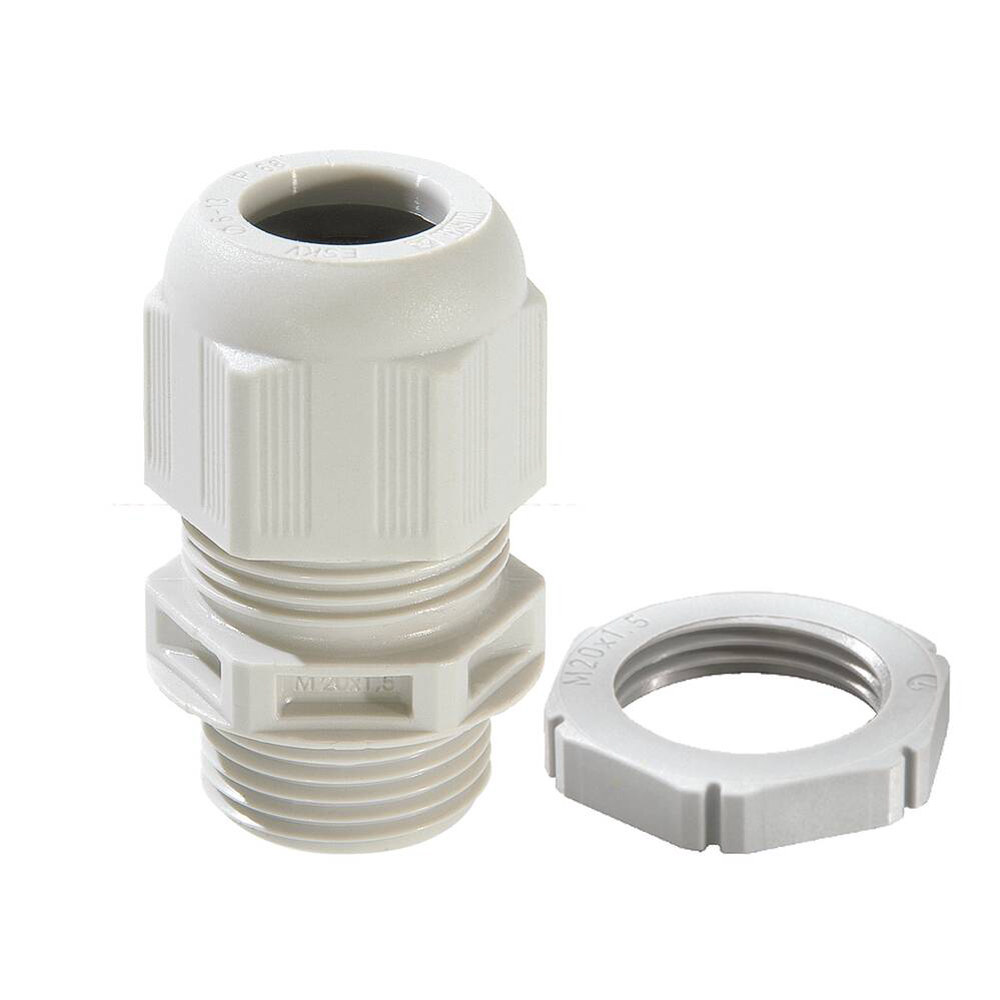

WISKA Sprint ® ESKV GLP Cable Gland Kits (Polyamide)
WISKA Sprint ® ESKV GLP Cable Gland Kits (Polyamide)

Product overview

WISKA Sprint ® ESKV GLP Cable Gland Kits (Polyamide) are Plastic Nylon Gland Packs for external or internal use on Unarmoured Cables. They provide environmental seal on the cable outer sheath, as well as exceptional strain relief and vibration protection. Ideal for diverse commercial and industrial environments, these durable nylon glands ensure safe, highly ingress-protected termination for flexible power, data, and control cables. They comply with British and European Standard BS EN 62444:2013, while delivering premium IP68 and IP69 protection ratings against prolonged submersion and high-pressure washdowns.

WISKA GLP Part Nos

Light Grey (RAL 7035): GLP12 Grey (99719), GLP16 Grey (99716), GLP16+RDE Grey (99722), GLP20+ Grey (10100613), GLP20+RDE Grey (10100635), GLP25 Grey (99704), GLP25+ Grey (10111148), GLP25+RDE Grey (99723), GLP32 Grey (99708 & 10112381), GLP32+ Grey (10111080), GLP32+RDE Grey (99724), GLP40 Grey (99710 & 10112384), GLP40+ Grey (10111150), GLP50 Grey (99712 & 10112386), GLP50+ Grey (10111152), GLP63 Grey (99714 & 10112388)

Black (RAL 9005): GLP12 Black (99718), GLP16 Black (99717), GLP20+ Black (10100612), GLP20+RDE Black (10100636), GLP25 Black (99705), GLP25+ Black (10111149), GLP32 Black (99709 & 10112382), GLP32+ Black (10111081), GLP40 Black (99711 & 10112383), GLP40+ Black (10111151), GLP50 Black (99713 & 10112385), GLP50+ Black (10111153), GLP63 Black (99715 & 10112387)

White (RAL 9001): GLP20+ White (10100611), GLP20+RDE White (10100637), GLP25 White (99706)

Red (RAL 3000): GLP20+ Red (10100614), GLP20+RDE Red (10100638), GLP25 Red (99707)

Features

  • Suitable for both indoor and outdoor use
  • Protection Class IP68 (Submersible up to 5 bar for 30 mins) and IP69 (Protected against high-pressure hot water jets)
  • Gland made from high-grade Polyamide (Nylon), featuring the patented WISKA Sprint® cap nut design for optimal seal and strain relief
  • Sealing gasket made from premium EPDM (Black)
  • Gland suitable for external or internal use on Unarmoured Cables
  • Delivers excellent mechanical cable retention and vibration-proof installation
  • Interlocking coarse thread prevents the cap nut from backing off or shaking loose under heavy machinery vibration

Technical Data

  • Complies with BS EN 62444:2013 (Standard for cable glands in electrical installations)
  • Gland rated to IP68 / IP69 EN60529
  • Service temperature range between -40°C to +100°C
  • Glow wire test rating of 750°C
  • Metric thread versions with standard 1.5mm pitch

WISKA Sprint ® ESKV GLP Cable Gland Kits Contents

  • SPRINT ® ESKV Polyamide (Plastic) Gland
  • Polyamide Locknut
  • EPDM Connection Thread Seal / Sealing Gasket

For more information on WISKA Sprint ® ESKV GLP Cable Gland Kits (Polyamide), please consult the Technical Data Table or Download the PDF files below.

Please note that technical information are subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

Gland Type Wiska Part No Entry Thread Size
(D x N)		 Entry Thread Length
(L)		 Cable Diameter Ø
 Key Width
(SW)		 Total Length
(TL)		 Qty per Kit
GLP12 Grey
 99719 M12 x 1.5 9 mm
3 - 7 mm
 16 mm 29 - 34 mm 10
GLP16 Grey
 99716 M16 x 1.5 9 mm
4.5 - 10 mm
 20 mm 31 - 37 mm 10
GLP16+RDE Grey
 99722 M16 x 1.5 9 mm
4.5 - 10 mm
 20 mm 31 - 37 mm 10
GLP20+ Grey
 10100613 M20 x 1.5 10 mm
6.2 - 14 mm
 24 mm 36 - 45 mm 10
GLP20+RDE Grey
 10100635 M20 x 1.5 10 mm
4 - 14 mm
 24 mm 36 - 45 mm 10
GLP25 Grey
 99704 M25 x 1.5 10 mm
9 - 17 mm
 29 mm 38 - 47 mm 10
GLP25+ Grey
 10111148 M25 x 1.5 10 mm
13 - 17.5 mm
 29 mm 38 - 47 mm 10
GLP25+RDE Grey
 99723 M25 x 1.5 10 mm 7 - 17 mm 29 mm 38 - 47 mm 10
GLP32 Grey
 99708 M32 x 1.5 12 mm 13 - 21 mm 36 mm 42 - 51 mm 10
GLP32 Grey 10112381 M32 x 1.5 12 mm  13 - 21 mm 36 mm 42 - 51 mm 1
GLP32+ Grey
 10111080 M32 x 1.5 12 mm 19 - 25 mm 36 mm 42 - 51 mm 10
GLP32+RDE Grey
 99724 M32 x 1.5 12 mm 9 - 21 mm 36 mm 42 - 51 mm 10
GLP40 Grey
 99710 M40 x 1.5 12 mm 16 - 28 mm 46 mm 52 - 65 mm 5
GLP40 Grey 10112384 M40 x 1.5 12 mm  16 - 28 mm 46 mm 52 - 65 mm  1
GLP40+ Grey
 10111150 M40 x 1.5 12 mm 21 - 33 mm 46 mm 52 - 65 mm 5
GLP50 Grey
 99712 M50 x 1.5 14 mm 21 - 35 mm 55 mm 59 - 72 mm 5
GLP50 Grey 10112386 M50 x 1.5 14 mm 21 - 35 mm 55 mm 59 - 72 mm  1
GLP50+ Grey
 10111152 M50 x 1.5 14 mm 32 - 39 mm 55 mm 59 - 72 mm 5
GLP63 Grey
 99714 M63 x 1.5 15 mm 34 - 48 mm 68 mm 64 - 78 mm 5
GLP63 Grey 10112388 M63 x 1.5 15 mm 34 - 48 mm 68 mm 64 - 78 mm 1
GLP12 Black
 99718 M12 x 1.5 9 mm
3 - 7 mm
 16 mm 29 - 34 mm 10
GLP16 Black
 99717 M16 x 1.5 9 mm
4.5 - 10 mm
 20 mm 31 - 37 mm 10
GLP20+ Black
 10100612 M20 x 1.5 10 mm
6.2 - 14 mm
 24 mm 36 - 45 mm 10
GLP20+RDE Black
 10100636 M20 x 1.5 10 mm
4 - 14 mm
 24 mm 36 - 45 mm 10
GLP25 Black
 99705 M25 x 1.5 10 mm
9 - 17 mm
 29 mm 38 - 47 mm 10
GLP25+ Black
 10111149 M25 x 1.5 10 mm
13 - 17.5 mm
 29 mm 38 - 47 mm 10
GLP32 Black
 99709 M32 x 1.5 12 mm 13 - 21 mm 36 mm 42 - 51 mm 10
GLP32 Black 10112382 M32 x 1.5 12 mm
13 - 21 mm
 36 mm 42 - 51 mm 1
GLP32+ Black
 10111081 M32 x 1.5 12 mm
19 - 25 mm
 36 mm 42 - 51 mm 10
GLP40 Black
 99711 M40 x 1.5 12 mm 16 - 28 mm 46 mm 52 - 65 mm 5
GLP40 Black 10112383 M40 x 1.5 12 mm 16 - 28 mm 46 mm 52 - 65 mm 1
GLP40+ Black
 10111151 M40 x 1.5 12 mm 21 - 33 mm 46 mm 52 - 65 mm 5
GLP50 Black
 99713 M50 x 1.5 14 mm 21 - 35 mm 55 mm 59 - 72 mm 5
GLP50 Black 10112385 M50 x 1.5 14 mm 21 - 35 mm 55 mm 59 - 72 mm 1
GLP50+ Black
 10111153 M50 x 1.5 14 mm 32 - 39 mm 55 mm 59 - 72 mm 5
GLP63 Black
 99715 M63 x 1.5 15 mm 34 - 48 mm 68 mm 64 - 78 mm 5
GLP63 Black 10112387 M63 x 1.5 15 mm 34 - 48 mm 68 mm 64 - 78 mm 1
GLP20+ White
 10100611 M20 x 1.5 10 mm 6.2 - 14 mm 24 mm 36 - 45 mm 10
GLP20+RDE White
 10100637 M20 x 1.5 10 mm 4 - 14 mm 24 mm 36 - 45 mm 10
GLP25 White
 99706 M25 x 1.5 10 mm 9 - 17 mm 29 mm 38 - 47 mm 10
GLP20+ Red
 10100614 M20 x 1.5 10 mm 6.2 - 14 mm 24 mm 36 - 45 mm 10
GLP20+RDE Red
 10100638 M20 x 1.5 10 mm 4 - 14 mm 24 mm 36 - 45 mm 10
GLP25 Red
 99707 M25 x 1.5 10 mm 9 - 17 mm 29 mm 38 - 47 mm 10

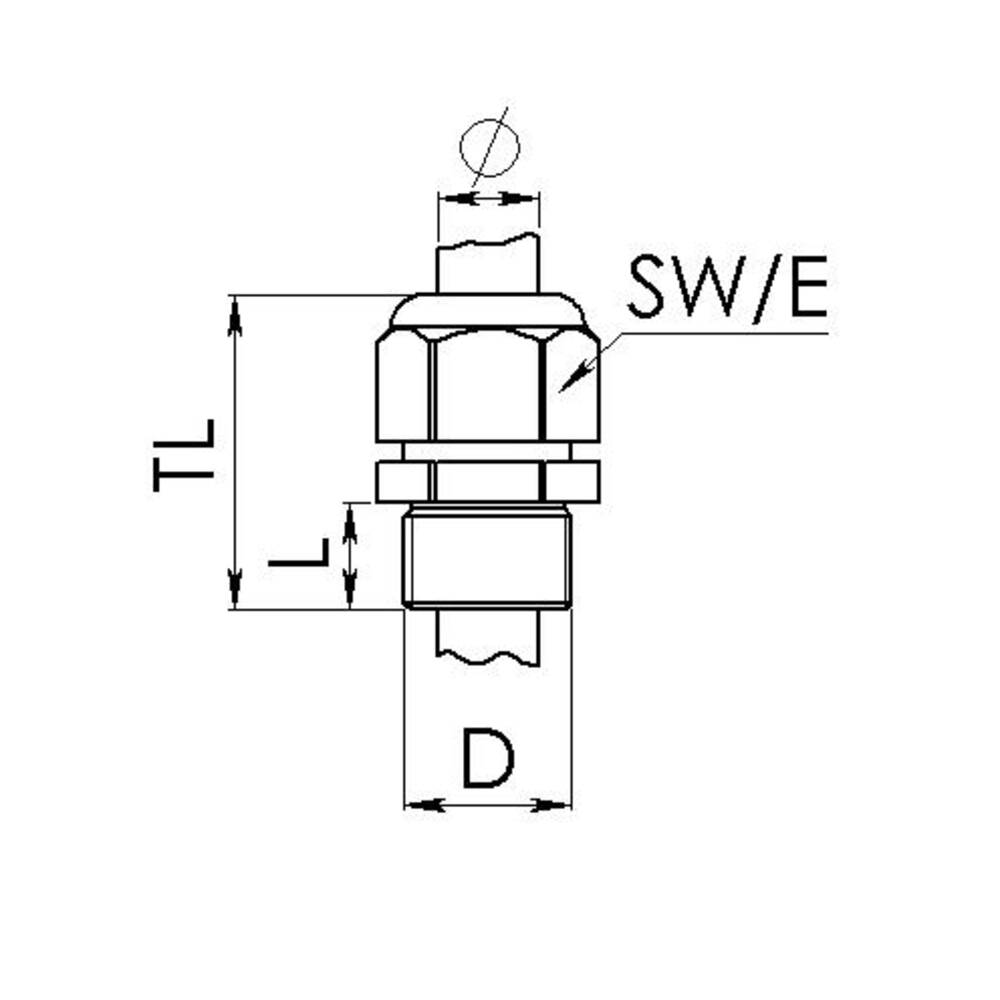

Wiska-Sprint-ESKV-GLP-Cable-Glands-Technical-Image
