Prysmian BICON Single Way Orbit Cleat 379SC Series (Stainless Steel Cable Cleat) should be used when you need the best level of protection in harsh environments under the highest fault conditions. Suitable for use with cables diameter 30 to 150mm. Manufactured from non-magnetic, corrosion resistant 316L stainless steel.
Prysmian Part Numbers: 379SC01, 379SC02, 379SC03, 379SC04, 379SC05, 379SC06, 379SC07, 379SC08, 379SC09, 379SC10, 379SC11, 379SC12, 379SC13, 379SC14.

Prysmian BICON Orbit Cable Cleat – Features & Benefits

  • Suitable for use with cable diameters 30 to 150 mm.
  • Single or double bolt fixing with reversible base for range taking.
  • Operating temperatures -40°C to +120°C.
  • Ergonomic design allows easy installation, with single tool tightening from the top side.
  • Manufactured from non-magnetic, corrosion resistant 316L stainless steel.
  • Liners are made from LSOH materials.
  • Suitable for use with single and multicore cables with high fault current requirements.
  • Suitable for standard and LSOH cable sheaths.
  • You can use the stainless steel cable cleat in harsh environments.
  • You can use it with all standard ladder and tray systems.
  • Prysmian BICON Single Way Orbit Cleat 379SC Series complies with BS EN 61914:2016.

For Additional Performance Data, Part Number Selection and other Technical Data, please advise PDF Files below. Technical Information subject to change without notice.

FREE Technical Advisory Service
E-Tech Components UK Ltd maintains a free technical advisory service.
Contact us for enquiries concerning this and all other products: +44 (0) 1744 762 929

Technical Data

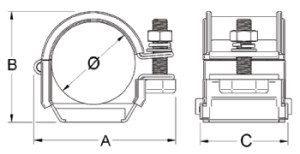

Design Number Cable Diameter A
Min (mm)		 Cable Diameter A
Max (mm)		 B (mm) C (mm)
 D (mm) E (mm) Weight (g)
379SC01  30 40 86 65 70 Centre Hole Only 435
379SC02 38 46 92 71 70 Centre Hole Only 467
379SC03 45 53 99 78 70 Centre Hole Only 499
379SC04 52 60 106 85 70 25 530
379SC05 59 67 113 92 70 25 526
379SC06 66 74 120 99 70 25 558
379SC07 72 82 132 111 70 25 639
379SC08 82 92 141 120 70 25 683
379SC09 92 103 151 130 70 50 737
379SC10 103 113 160 139 70 50 784
379SC11 113 123 169 148 70 50 764
379SC12 122 132 178 157 70 50 865
379SC13 131 141 177 156 70 50 908
379SC14 140 150 196 175 70 75 950



Notes:
All cleats have a single central fixing hole for a 12mm diameter fixing bolt. Styles 04 to 14 can also be fixed with 2 x 10mm bolts - the 10mm clearance holes are positioned either side of the central hole with centres as per dimension E.
Technical Data subject to change without notice.

Performance Data

BS EN 61914 Clause Classification
Type 6.1.3 Composite
Operating Temperature 6.2 -40°C to +120°C
Resistance to Short Circuit (two shot) 6.4.5 77.3kA RMS, 170kA Peak, Cable Spacing =125mm, Cleat Spacing = 600mm, Cable Ø = 66mm
Resistance to Corrosion 6.5.2.2  High, Outdoor - wet conditions
